YRT1200 (IDxODxH:1200x1490x164mm) Rotary Table Bearings| Axial/Radial Turntable bearing

Author: Published:2016-06-02 Views:1374

YRT1200 (IDxODxH:1200x1490x164mm) Rotary Table Bearings| Axial/Radial Turntable bearing

YRT1200 (IDxODxH:1200x1490x164mm) Rotary Table Bearings| Axial/Radial Turntable bearing
 A . Rotary Table Bearings Parameters
BrandBYC
Model numberYRT1200
Inner ring1200mm
Outer ring1490mm
Width164mm
Weight500kg
MaterialsGCR15/GCR15SiMn
PrecisionP4/P2
LubricationGrease lubrication
Rotating partInner ring/Outer ring
Load directionMulti-load
StructureIntegrated Inner/Outer Ring,Mounting Hole in Outer ring

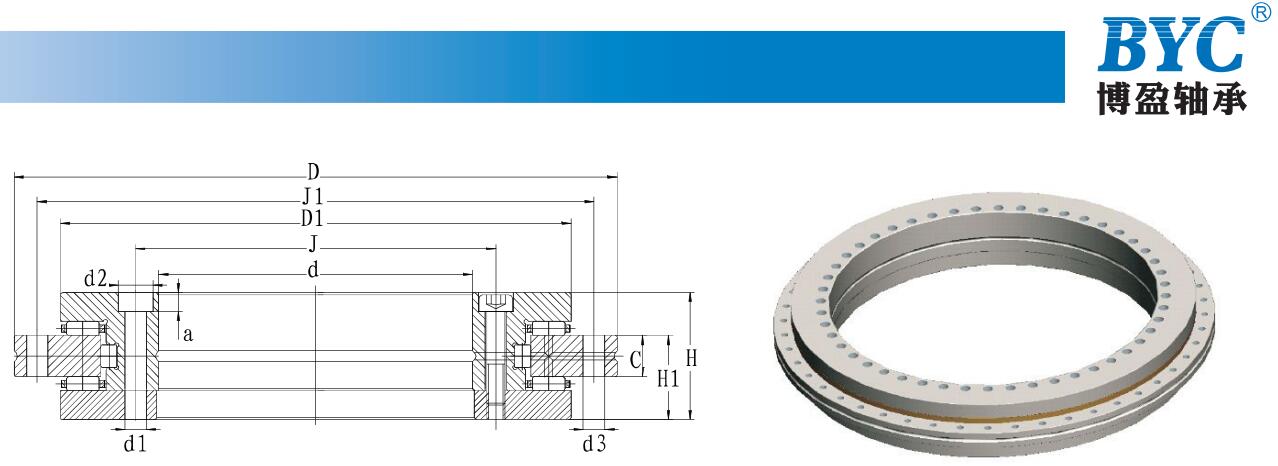

 B . YRT1200 Rotary Table Bearings Specification Sheet
Model
Number
Main dimensions  (mm)Fixing Hole
(Inner ing)
Fixing Hole
(Outer ing)
Number of
retaining
screws
Extraction
thread hole
Number of
pitches
x Angle
dDHH1CD1JJ1d1d2aNumd3QuantityGQuantity
YRT1200120014901641085214101240144518.5261760186612M16672×5°

 C . YRT type Rotary Table Bearings Details
Product FeaturesYRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.
Series Model No.YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200
ApplicationsProduct Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc
